Product
CPG4 Extension Battery 280 Ah - 12 V
Li-Ion extension battery for capacity expansion with integrated DC-DC converter.
View product
G4 Li-Ion Batteries

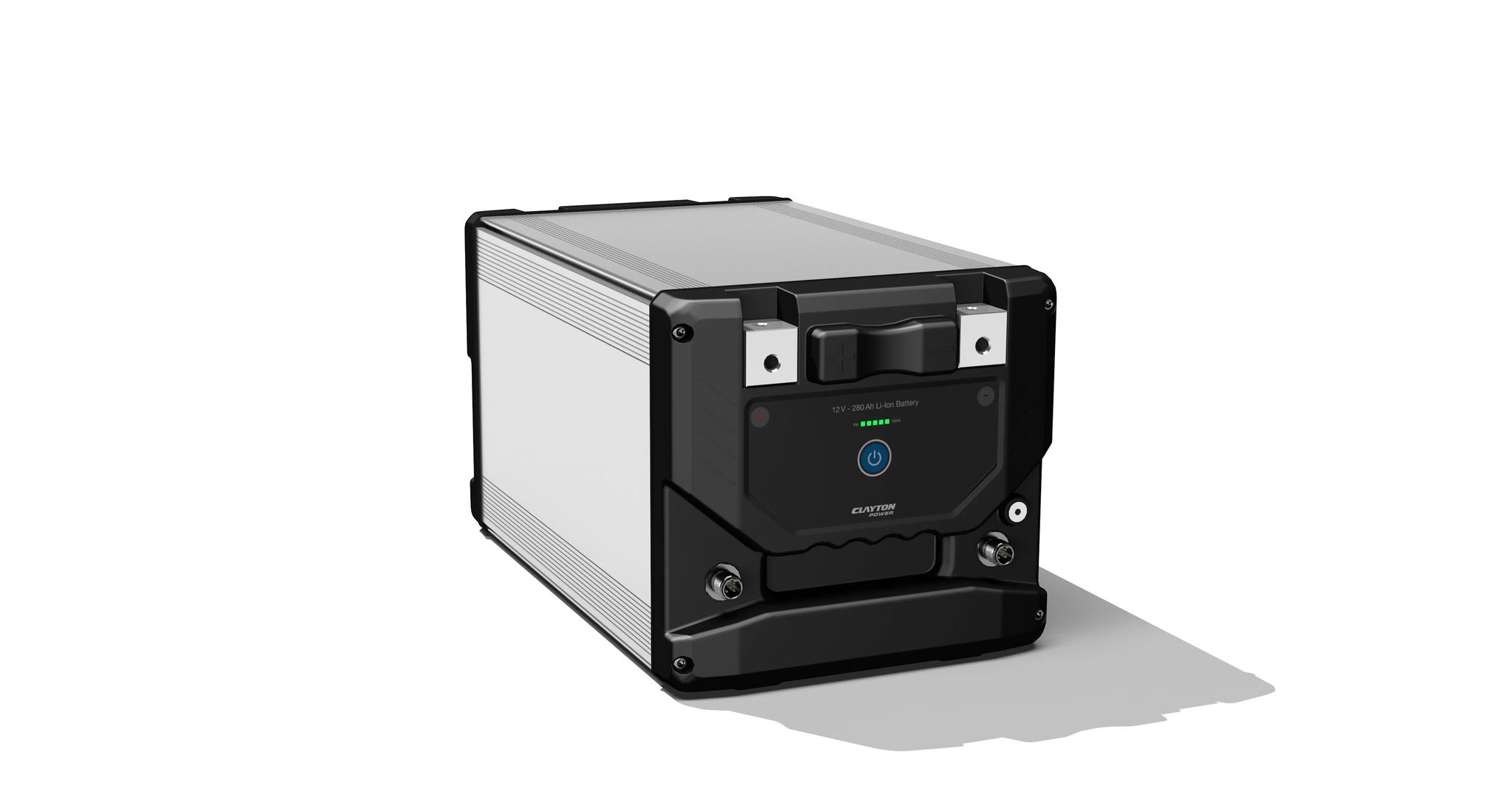

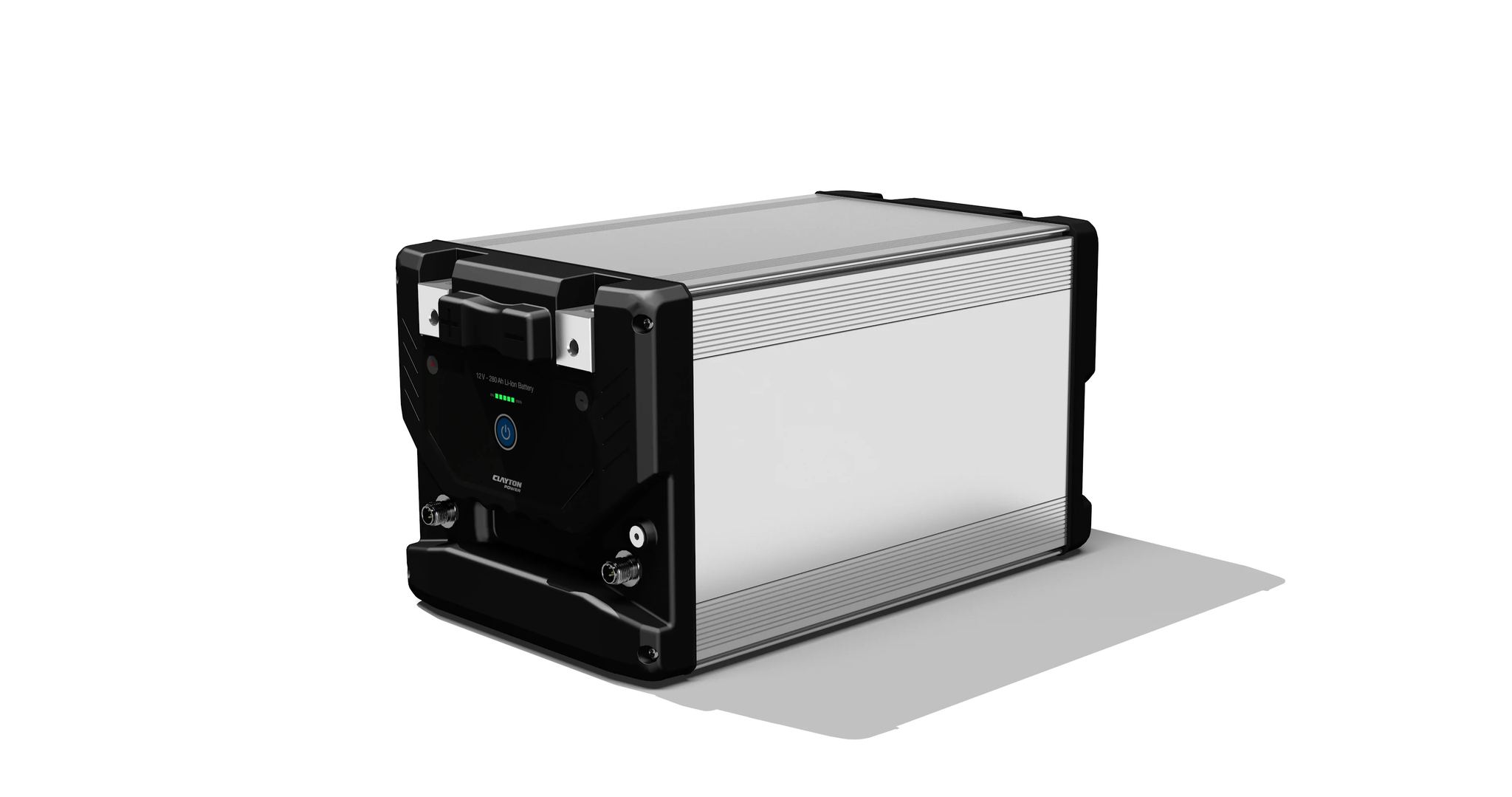

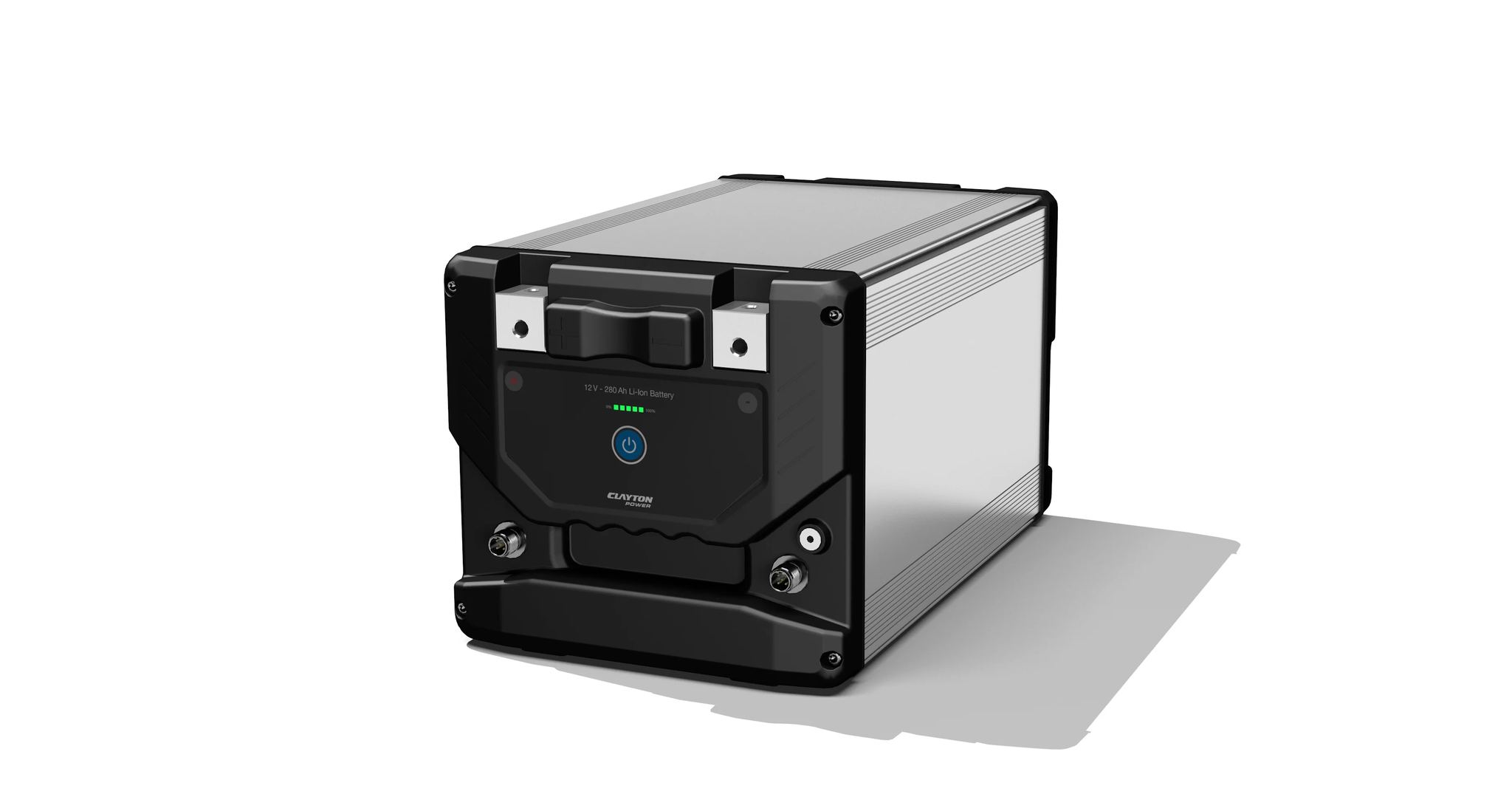

AvailableCPG4 Extension Battery 100 Ah - 12 V
Lithium battery extension for LPS power solutions with integrated DC-DC converter.
- LiFePO4 cell technology with ultra-high energy density

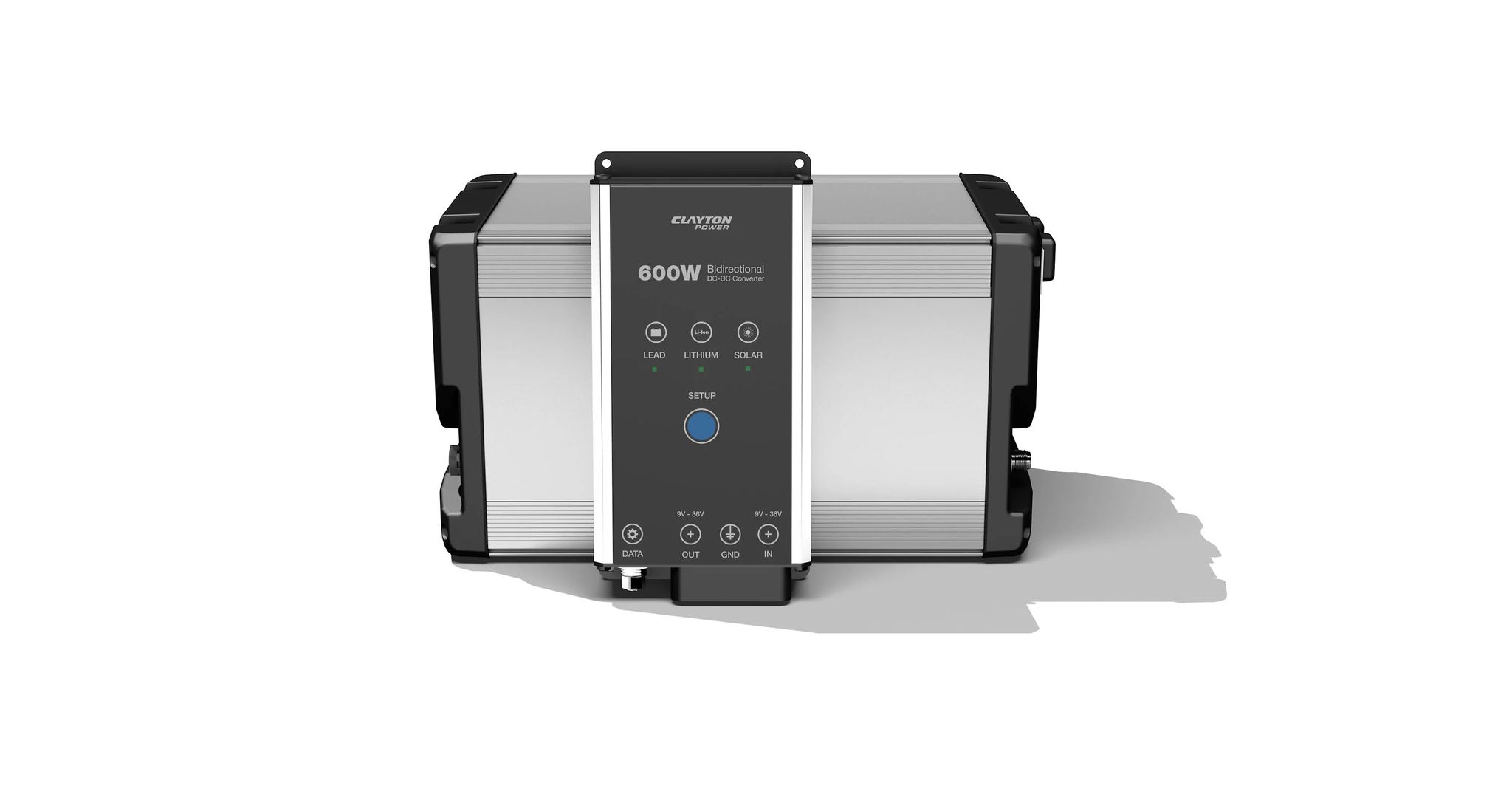

- Integrated 600 W DC-DC converter for capacity extension
- Integrated Battery Management System with cell balancing
- Safe for parallel connection with LPS systems
- Vibration and safety tested for automotive and leisure use
- Metal frame with flame-retardant enclosure
- Integrated power switch and bracket included
Recommended retail price
From £ 1,339 excl. VAT
Ultra-compact Li-Ion battery with LiFePO4 cells for high energy density and a long service life. Designed as a scalable capacity extension for LPS systems, with an integrated 600 W DC-DC converter for heavy-duty leisure, industrial and automotive applications. Includes an integrated Battery Management System for cell balancing and precise state-of-charge monitoring.
Specifications
Battery
- Type
- LiFePO4
- Capacity
- 100 Ah (1280 Wh)
- Effective Capacity
- 80 Ah (1024 Wh)
- Nominal Voltage
- 12.8 VDC
- Charging Voltage
- 14.4 VDC
- Discharge Voltage
- 10.8 VDC
Performance
- Continuous Discharge Current
- 200 A
- Continuous Charging Current
- 175 A
- Cycle Life
- 2000 cycles @ 25 °C, 80 % DOD
Physical
- Height
- 187.4 mm
- Width
- 197 mm
- Length
- 343.3 mm
- Weight
- 11 kg
- Connection

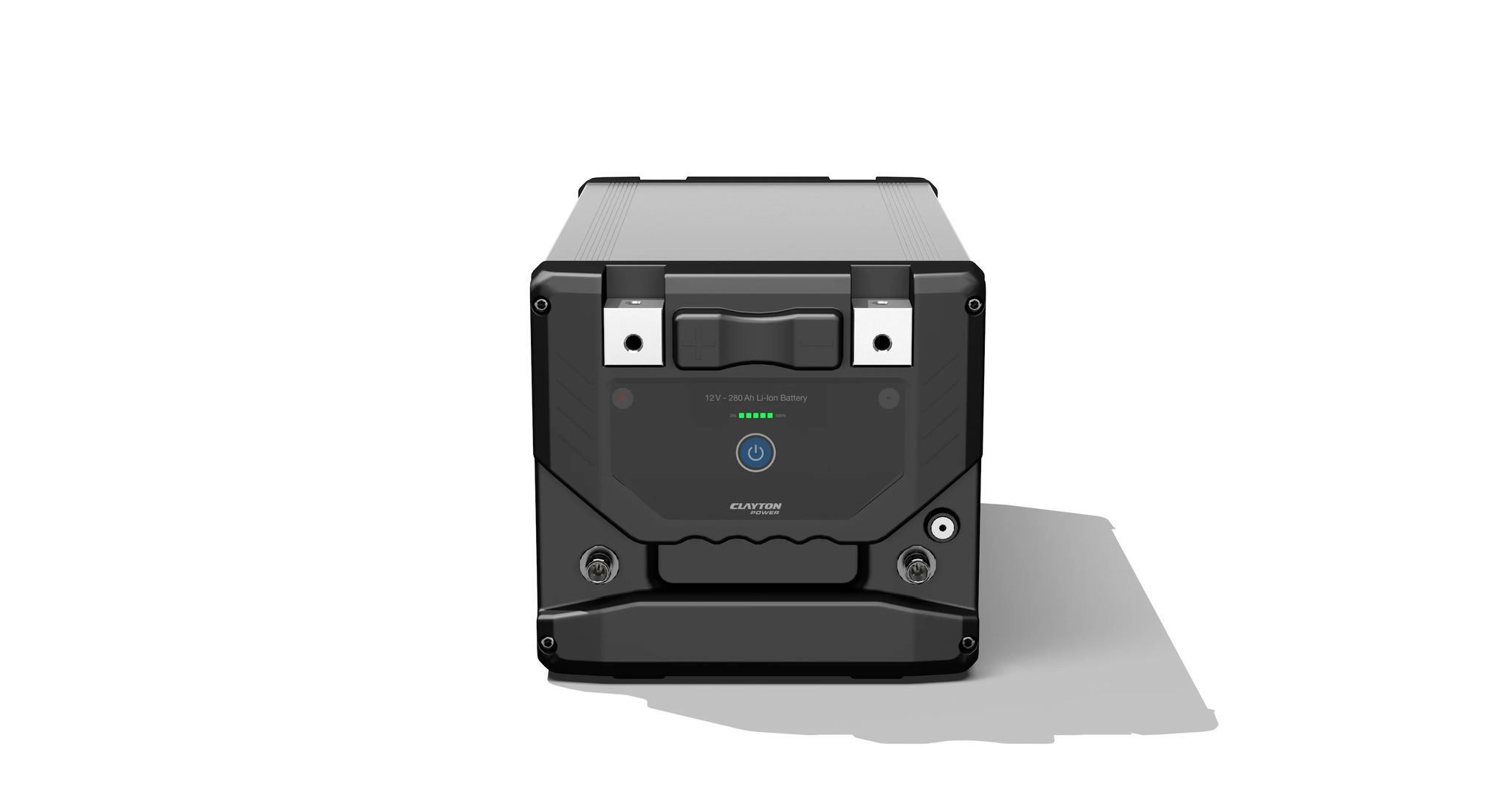

- M8 screw terminals
