LPS II 2500 - 1 kWh

Lithium Power Supply

Available

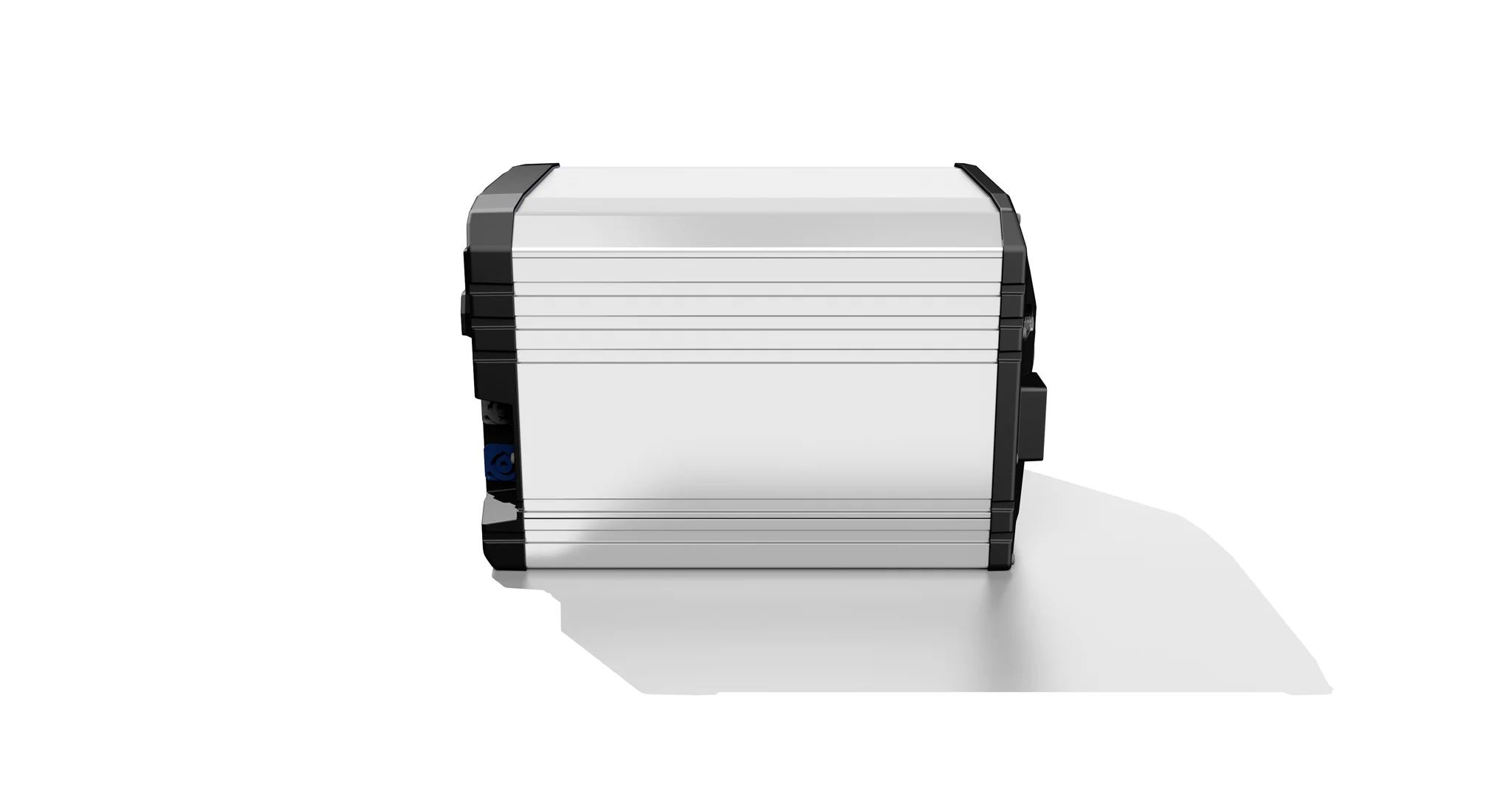

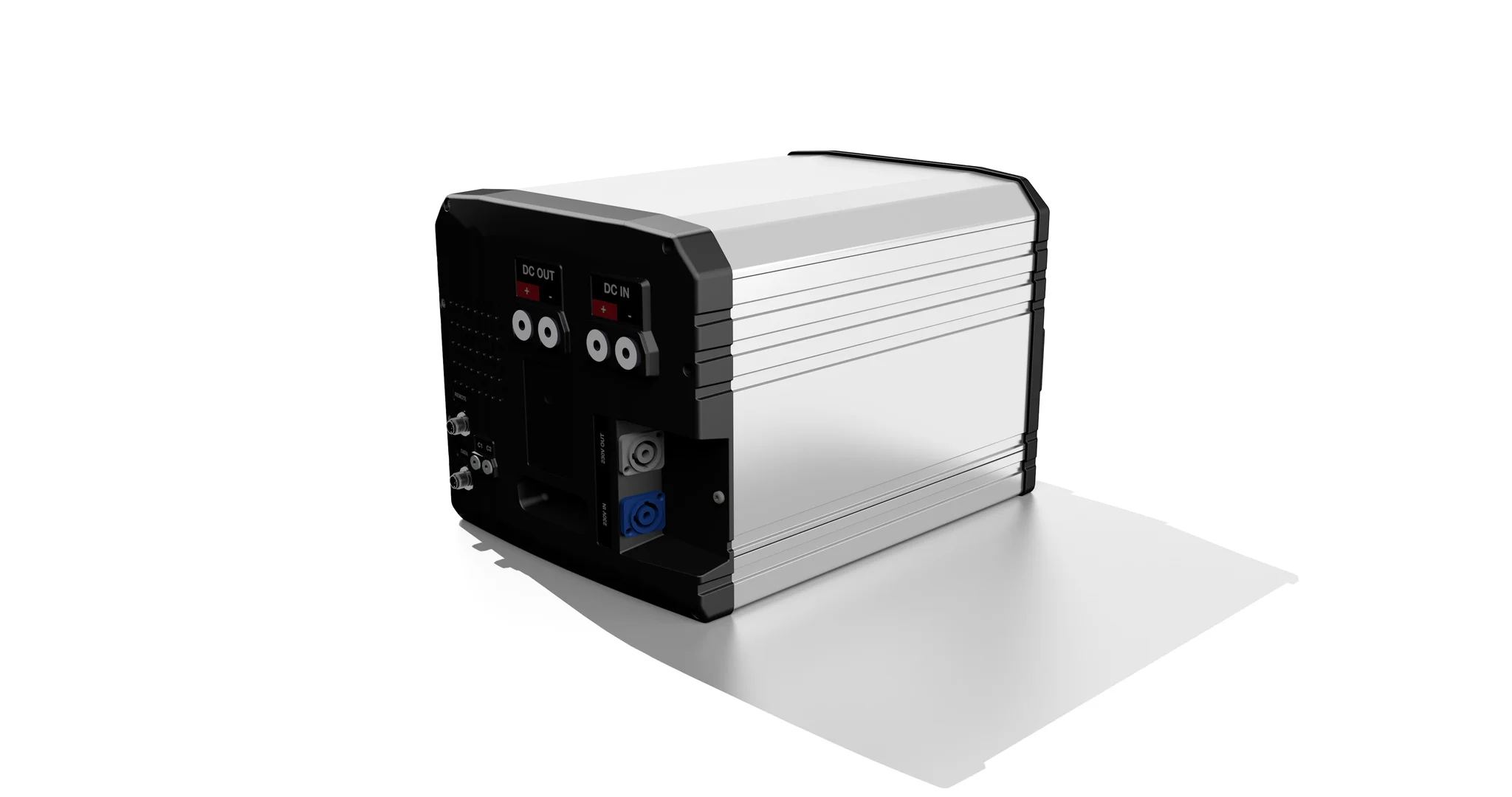

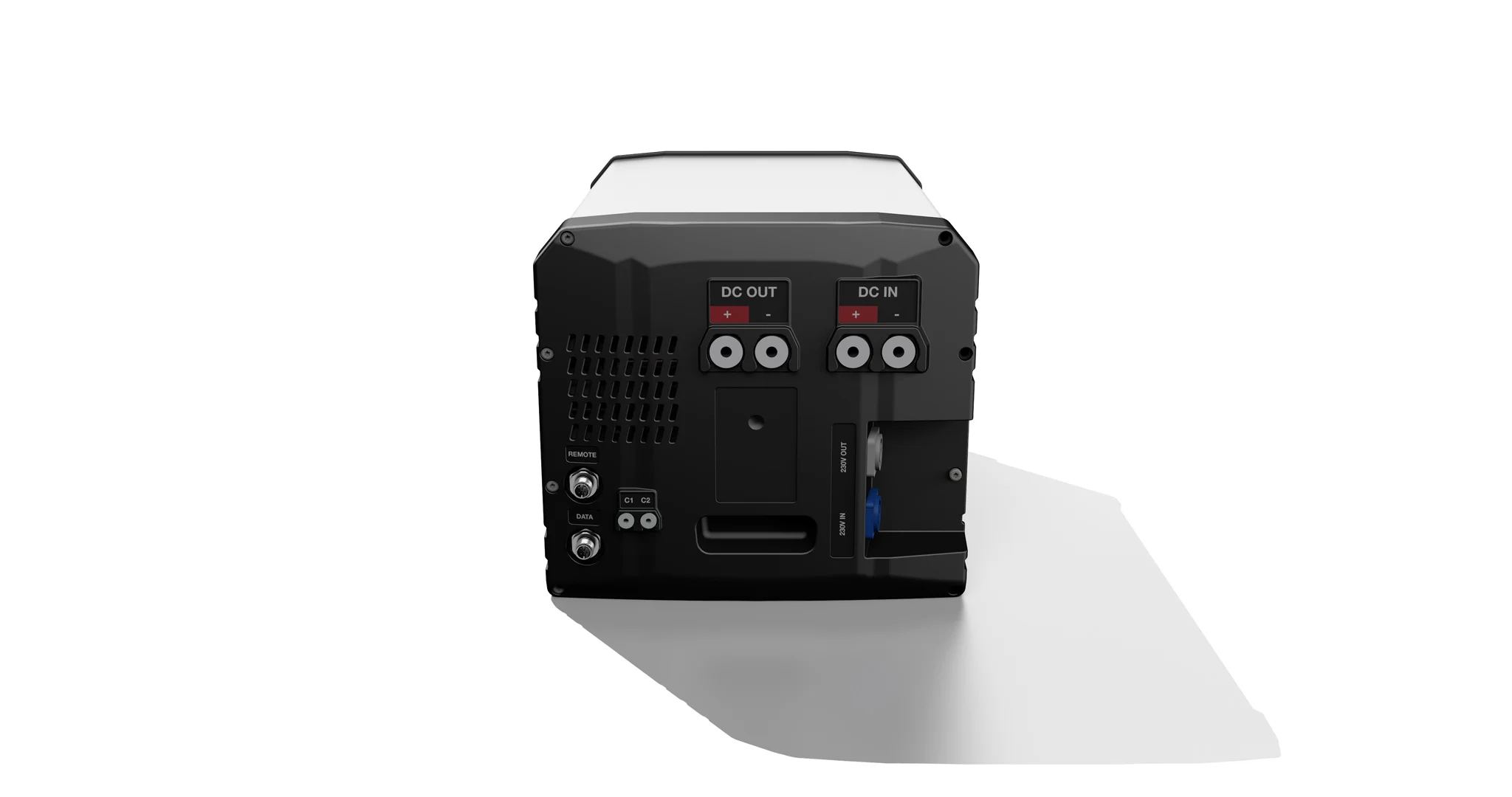

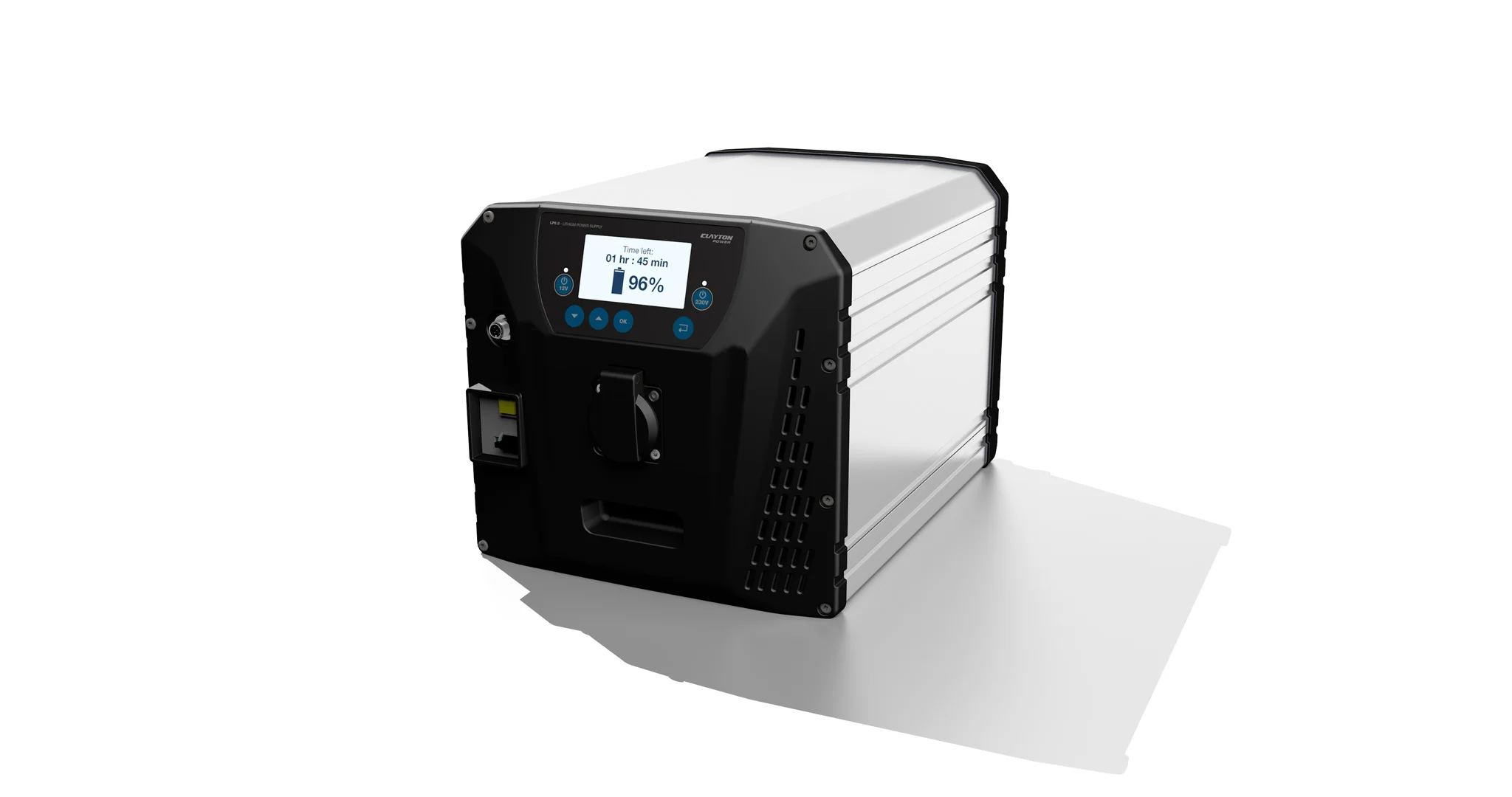

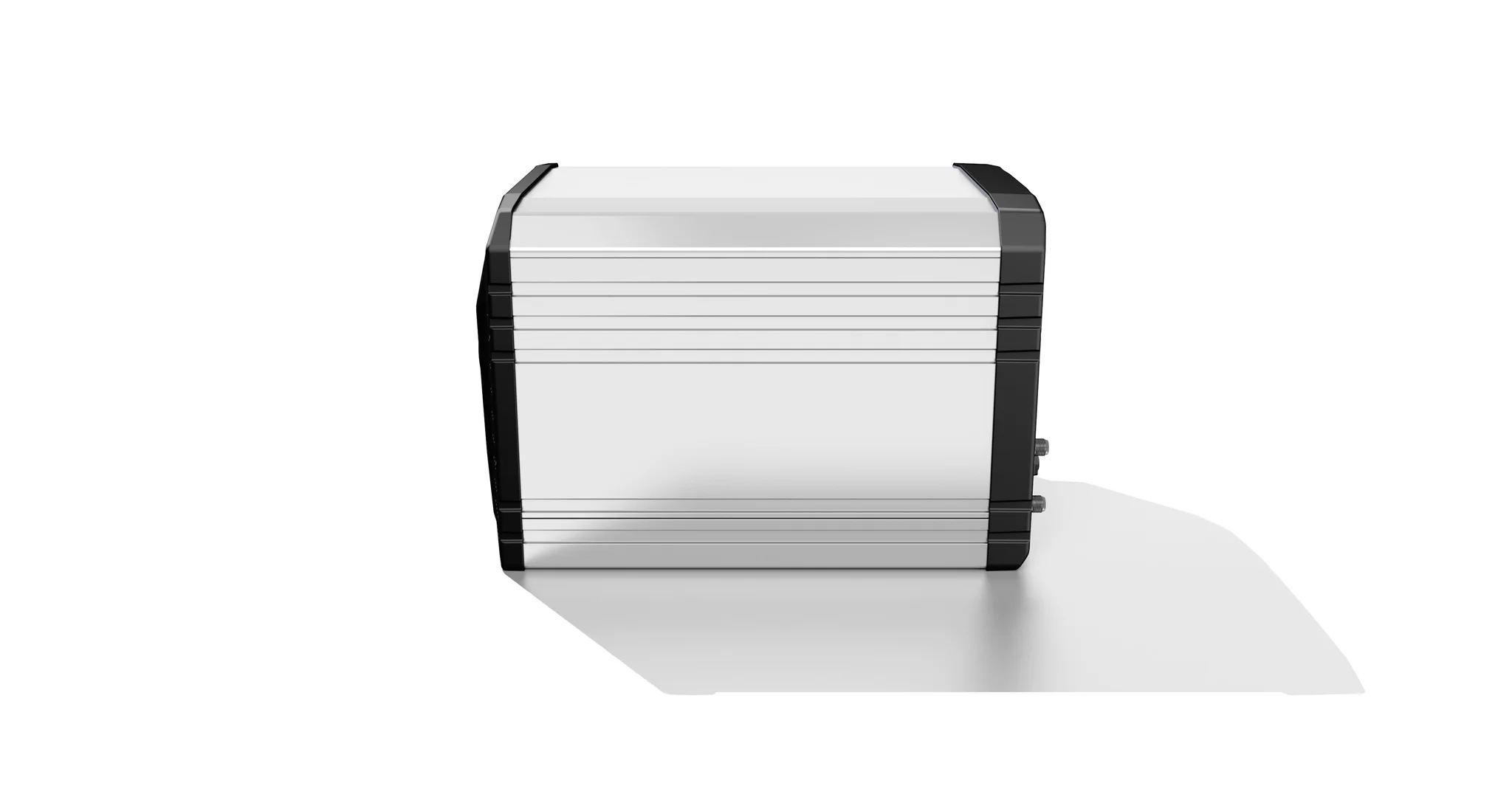

LPS II 2500 - 1 kWh

All-in-one Lithium Power Supply delivering 230 VAC and 12 VDC power to appliances without the complexity of additional equipment. Even with the vehicle switched off, the LPS II keeps your tools running. It can be charged from the vehicle’s alternator, solar panels or mains power.

0–80 % charging in 48 minutes with Super Charge
Flexible charging: alternator, solar (400 W), mains (790 W)
2000 W continuous AC output, 5000 W peak
270 A DC output (60 seconds), 180 A continuously
Built-in inverter, booster, solar controller, intelligent charger
Jumpstart capability
Status overview and charging summary
Clayton Power GO App compatible
Compact 23.5 kg design
5000-cycle battery lifetime

Recommended retail price

From £ 2,549 excl. VAT

SKU: CL2002, CL2102, CL2112 (UK)

The LPS II series

One system.
A better way to work.

idling

Eliminate idling

Reliable power for mobile work — without running the vehicle engine or a generator on site.

Compact

Lightweight design

The LPS II delivers high power at a far lower system weight — helping protect payload in professional vans.

Designed for electric vehicles

Charge your LPS power supply from the vehicle.

Rapid charging

Supercharger

Get the most out of LPS recharging from the vehicle alternator on short drives between jobs with the optional Supercharger.

Safety

Safety you can trust

Certified mobile power with household-level electrical safety — for 12 V DC and 230 V AC use inside or outside the vehicle.

Fuel

No fuel handling

Fuel consumption and daily refuelling are eliminated — with savings measured against the previous setup.

Power Platform

Live monitoring

Track system status, energy use and maintenance indicators across the fleet through the Power Platform.

Charging

Flexible charging

Charge from the vehicle, from solar or from the mains — adapting to whichever energy sources are available throughout the year.

Scalable

Increase capacity

Add G4 Lithium batteries to increase system capacity, flexibility and runtime for demanding mobile power applications.

Peak Inrush Power

13 000 W Peak Inrush Power

With up to 13,000 W Peak Inrush Power, the LPS II 3000 delivers the extra capacity needed for demanding tools, equipment, and mobile work.

Ready

Tools ready when needed

Onboard power keeps tool batteries charged and ready whenever crews need them.

Onboard power solution for EVs and Diesel Vans

Jumpstart

Jumpstart – never get stranded again.

Start the vehicle from the Clayton Power system when the starter battery is flat — without bulky booster packs or roadside assistance.

App

App connected

Download the Clayton Power GO app to your phone and unlock extra features. Switch the power on and off, check charging status and much more.

installation

Easy installation

A compact all-in-one system built for quick workshop installation and easy transfer between vehicles.

Maintenance

No maintenance

Long-lasting, maintenance-free power — without the servicing demands of generators or traditional lead-acid systems.

Certifications & compliance

LPS CE Declaration
This confirms that the LPS II complies with the EU regulations required for CE marking.
LPS CE Declaration(PDF · 50 KB)
R027-06 – UKCA Declaration LPS
This documents compliance with the UKCA marking. It is almost identical to the CE declaration, but in addition to compliance with the EN/IEC standards listed in the CE declaration, it also states conformity with the following UK Statutory Instruments: 2016 No 1101 2016 No 1091 2012 No 3032
R027-06 – UKCA Declaration LPS(PDF · 97 KB)
EN IEC 62368-1:2024+A11:2024
This is a test report documenting compliance with EN IEC 62368-1:2024+A11:2024, and it forms the basis for CE compliance.
EN IEC 62368-1:2024+A11:2024(PDF · 11.1 MB)
LPS II - E5 10R06 01 0488 01
The “E” marking certificate showing compliance with UN Regulation No. 10. This certification is required for equipment installed in vehicles.
LPS II - E5 10R06 01 0488 01(PDF · 475 KB)
LPS II - UN 38.3 160 Ah
This is the UN 38.3 test report for the LPS II units fitted with the 160 Ah batteries. It is required for the transport of dangerous goods, so that we can ship the LPS II to customers.
LPS II - UN 38.3 160 Ah(PDF · 145 KB)
LPS II - UN 38.3 100 Ah
Same as LPS II - UN 38.3 160 Ah, but for units using the 100 Ah batteries.
LPS II - UN 38.3 100 Ah(PDF · 152 KB)
LPS II – Material Safety Data Sheet, 1500 W, 2500 W
This is a standardised document containing essential occupational health and safety information on the various substances and chemicals used in the LPS II. This document applies to the small units.
LPS II – Material Safety Data Sheet, 1500 W, 2500 W(PDF · 128 KB)
LPS II – Material Safety Data Sheet 3000 W
This is a standardised document containing essential occupational health and safety information on the various substances and chemicals used in the LPS II. This document applies to the LPS II 3000
LPS II – Material Safety Data Sheet 3000 W(PDF · 126 KB)
Installations in the Netherlands – NEN1010 compliance
NEN1010 is the standard setting out the requirements and guidelines for the safe and compliant execution of low-voltage electrical installations. In certain cases, installations may be assessed and approved by local inspection bodies to confirm conformity with the standard.
Installations in the Netherlands – NEN1010 compliance EN(PDF · 119 KB)Installations in the Netherlands – NEN1010 compliance NL(PDF · 117 KB)
