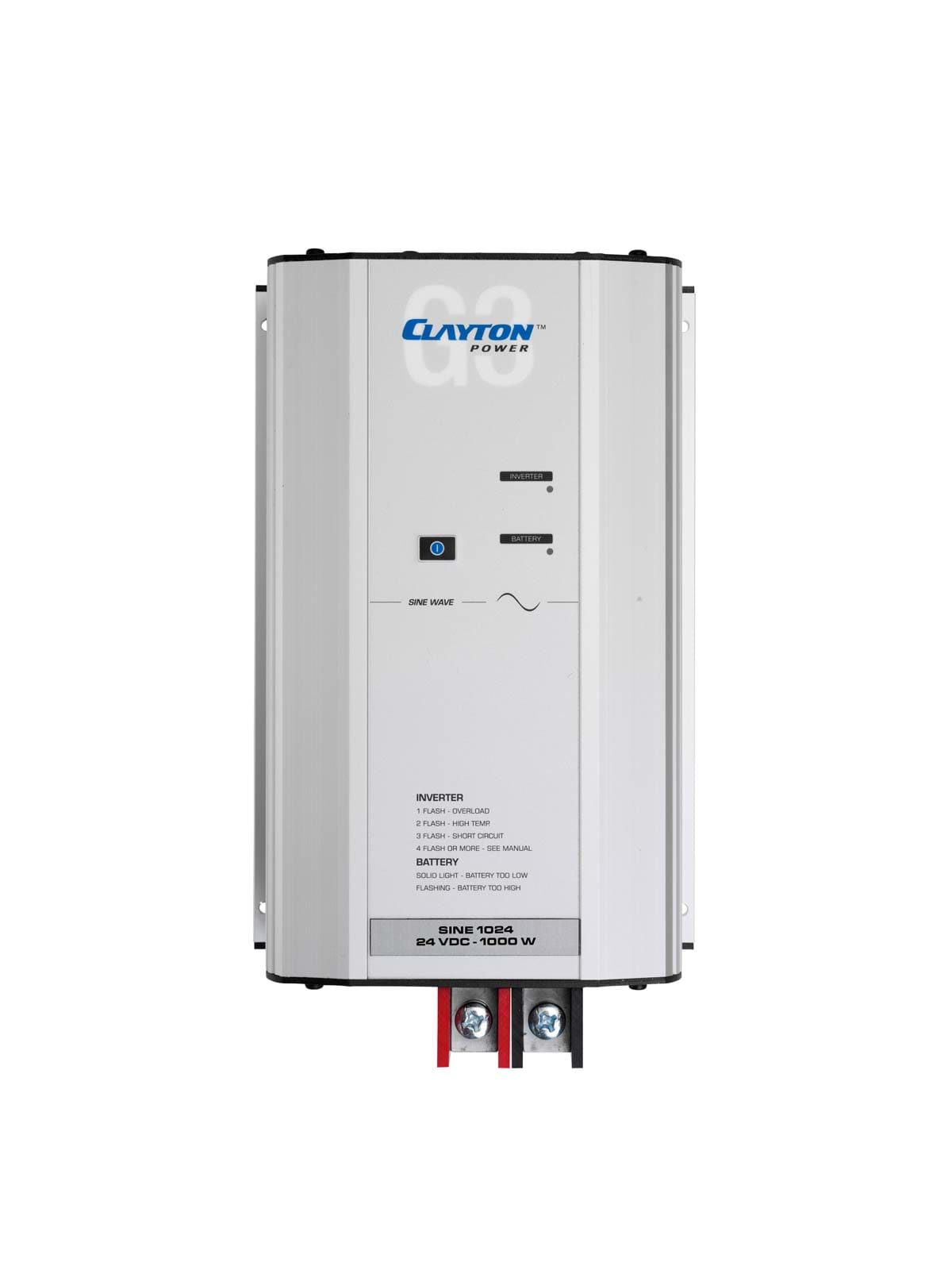

G3 Inverter 1024

Model Number: G3 Inverter 1024

SKU: CI1204

24V - 230V Sine Wave Inverter.  Powers 1200W and 2000W in peak.

230 V/50 Hz output

Peak: 2000 W

>15 minutes: 1200 W

Power: 1000 W

€ 770.00 Excl. vat € 962.50 Incl. 25 % VAT

Deep discharge protection

Protects the battery pack against deep discharge.

Deep discharge protection

Protects the battery pack against deep discharge.

Deep discharge protection

Protects the battery pack against deep discharge.

Specifications

Inverter/Charger model: G3 1024-30
Continuous output power (-20°C to +50°C): 1000W
Output power surge (15 min.): 1200W
Output power surge (10 sec.): 1500W
Output power surge ( 1 sec.): 2000W
Nominal input voltage: 24VDC
Max input voltage: 30VDC
Low battery voltage cut-off (Slow 3 sec.): 21VDC
Low battery voltage cut-off (Fast <10 mS): 18VDC
No load power consumption: 10W
Voltage for switch ON (after cut-off): 25,5VDC
Dimensions (mm): 198x336x118
Weight: 7,5kg
Package dimensions WxHxD (mm) 460x260x275
Package weight (total) 8,6kg
