Easy access to power anywhere

All-in-one LPS with built-in Li-Ion battery.

The all-in-one Lithium Power Supply (LPS) provides power to your 230 VAC and 12 VDC appliances without the complexities of additional equipment. Even when the vehicle is switched off, the LPS II will still recharge and power your tools.

LPS II 1500 - 1 kWh SE

Peak: 2600 W - Power: 1500 W.

€ 1,900.00 excl. VAT

€ 2,375.00 Incl. 25% VAT

Configure kit Add to basket

LPS II 2500 - 1 kWh

Peak: 4000 W - Power: 2500 W.

€ 2,995.00 excl. VAT

€ 3,743.75 Incl. 25% VAT

Configure kit Add to basket

LPS II 3000 - 2 kWh

Peak: 5000 W - Power: 3000 W.

€ 3,695.00 excl. VAT

€ 4,618.75 Incl. 25% VAT

Configure kit Add to basket

LPS II 3000 - Kit 1

LPS II 3000 - 2 kWh includes mounting bracket and remote control. Peak: 5000 W - Power: 3000 W.

€ 3,992.00 excl. VAT

€ 4,990.00 Incl. 25% VAT

Configure kit Add to basket

LPS II 3000 - Kit 2

LPS II 3000 - 2 kWh includes solar panels, mounting bracket and remote control. Peak: 5000 W - Power: 3000 W.

€ 4,390.00 excl. VAT

€ 5,487.50 Incl. 25% VAT

Configure kit Add to basket

POWER 230 V AND 12 V
HEAVY-DUTY LOADS

FULLY CHARGED CORDLESS TOOLS EVERY DAY

ZERO ENGINE IDLING

RAPIDLY RECHARGING
FROM 0-80% IN 48 MIN.

GENERATE CSR-REPORTS FROM THE BUILT-IN ENERGY METER

JUMP START FUNCTIONALITY IN CASE OF FLAT STARTER BATTERY

More powerful and compact than ever seen

Use 230 V and 12 V at the same time.

Sufficient power for your compressor, angle grinder and welding equipment. At the same time, batteries for your tools are charging. You can focus on delivering the perfect service to your customers.

Heavy-duty 12 VDC tasks require an LPS II solution

Use 230 V and 12 V at the same time.

Be it operating cranes and lifts, heaters, or working lights the LPS II's outlet of 350 A for one minute and 180 A continuously will be the reliable solution for your daily tasks.

Operate your crane more than 25 times per cycle

12 VDC outlet of 350 A for one minute and 180 A continuously

Rapidly recharged for every stop and every job

Super Charge DC-DC Converter

500 W standard

1 kWh LPS standard.
From 0-80% in 1 hr : 22 minutes.

1000 W Super Charger

1 kWh LPS with Super Charger.
From 0-80% in 48 minutes.

LPS Simulator

A true industrial power solution with zero engine idling

Enable smarter energy consumption.

No idling makes the LPS system CO2-friendly, fuel saving and at the same time a competitive product on price, quality and durability.

Automotive: Utility vehicle, Automotive: Telecom vehicle

Powering the Future: National Grid Transitions to Cleaner Vehicle Technology

Automotive: Service vehicle

Net-zero: The transition to electrification was a no brainer

Automotive: Service vehicle

Compact power supply without idling in the vans of Aarsleff Rails

Automotive: Inspection vehicle

The daily work requires power for different equipment

Case Studies: Automotive

Get rid of the generator

Case Studies: Automotive

The gardener goes cordless electric and gets fully recharged batteries every day

Automotive: Service vehicle

Hydraulic service in the field without any problems

Automotive: Service vehicle

230V in the vehicle is a huge advantage

Automotive: Utility vehicle

All the power you need for a day’s work without a petrol-powered generator

Automotive: Service vehicle

Power available in the vehicle at any time

Automotive: Service vehicle

With an LPS there is always fully charged tool batteries

Automotive: Utility vehicle

Cadent is the first utility to adopt battery power system

Automotive: Food truck

Lola’s Cupcakes specialise in creating handcrafted, eye catchingly tasty cakes

Automotive: Service vehicle

John Deere’s service vehicles are now 120 kg lighter thanks to a new LPS battery system

Automotive: Service vehicle

Auxiliary power in service vans made easy with an LPS 2500W

Automotive: Inspection vehicle

TV inspection vehicle with 220V all-in-one battery system generating power for the whole day

Automotive: Telecom vehicle

Electrifying procedures saves 3 hours of idling a day per van

Automotive: Service vehicle

LPS power system operational after a short 5 – 10 minutes’ drive

Flexible charging ensures top efficiency

Rapidly recharged for every stop and every job.

Vehicles Alternator

Mains Power

Solar Recharging

Charge when driving

The LPS II can be charged from the vehicle’s alternator with 500 W (45 A) - from 0%-80% in up to 60 minutes.

Charging with solar

The LPS II has a built-in 400 W MPPT Charge Controller allowing you to charge directly from solar panels.

Power and charge tools when parked

Even when the vehicle is switched off, the LPS II will still charge and power your tools.

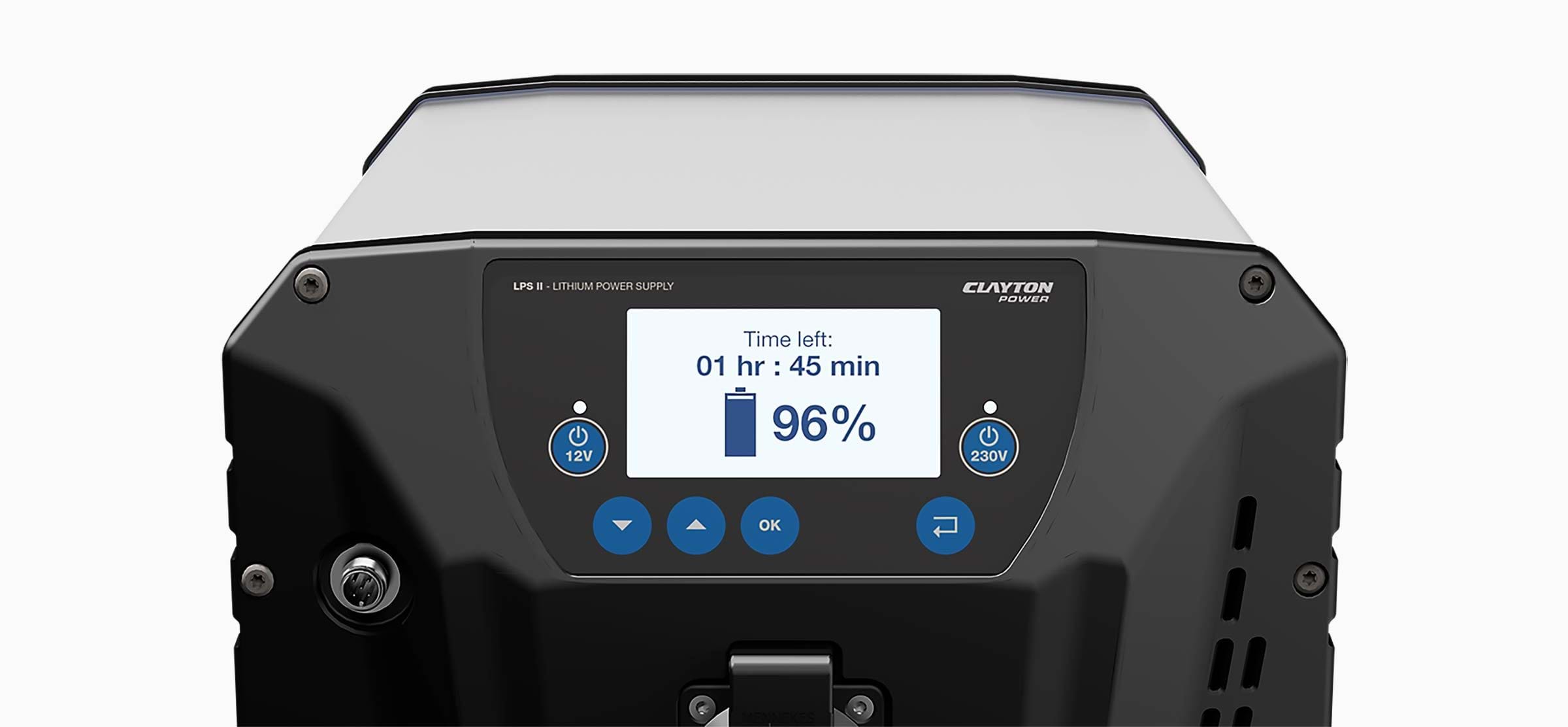

Easy overview and full control keep you in charge

Precise monitoring and data feedback.

LPS Simulator

Overview of remaining operation/charging time, combined with rapid recharge ensures there will be no surprises.

1 kWh LPS with Super Charger

From 0-80% in

48 minutes

Power in the vehicle with a 230V and 12V battery system

Generate CSR-reports from the built-in Energy Meter

The energy meter in the Clayton Power LPS battery system shows you exactly how much energy is saved by using solar panels. This information can be used for CSR documentation.

Welder

2000 W: 50 min.

More than 15 sticks used and 2 meter welding

Air Compressor

1500 W: 1 hr 15 min.

More than 1 km of fibre blowing

Angle Grinder

1000 W: 1 hr 40 min.

More than 5 m2 polished steel

Demolition hammer

800 W: 1 hr 50 min.

More than 3 ton broken concrete

Driller

600 W: 3 hrs.

Hundreds of holes

Jigsaw

500 W: 3 hrs 15 min.

More than 50 meter plywood

Smart functions, easy overview and adjustability

The LPS can be used in many setups and scenaries after your specific needs.

+ Adjustable 230 VAC charging
+ Adjustable 12 - 30 VDC charging
+ Adjustable Solar charging
+ Summary of charging history
+ Status overview
+ Jumpstart

The right product for the right job

Being a compact, all-in-one power system, the LPS II takes away the hassle of additional components and space – giving you the freedom to think about the more important things.

LPS II 3000 - Weight: 27 kg

Traditional battery system - Weight: 145 kg

All-in-one

An LPS II 3000W has a built-in: 2 kWh Lithium-Ion Battery, 230V Pure Sine Wave Inverter, Booster (recharge from the alternator), 400W MPPT Charge Controller (recharge from solar panels), Intelligent charger (recharge from mains), relays and more.

LPS SIMULATOR

Let's find the right power solution for you

Contact Clayton Power

+45 46 98 57 60

or one of our Sellers.

We are locally represented

The nearest seller is only km away from you!

Find seller

FAQs

What does 1 and 2 kWh mean?

The lithium battery capacity of 1 kWh means that you can run an application with a consumption of 1000 W in one hour, 500 W for two hours and 250 W for four hours. A 2 kWh battery has twice the capacity.
Example: Power tools 500 W x 1 hour + Light 150 W x 5 hours = 1,25 kWh

How many cycles can it achieve?

The battery can handle 2000 cycles – which is usually equivalent to 10 years of use.

How long does it take to recharge?

1 kWh lithium:
• From 0-80% in about 60 mins from DC and mains
2x faster recharging time with the supercharger – from 0-80% in half an hour (only from alternator)
• 400W recharges from solar, from 0-80%, in 90 mins (which is why solar is often used to reduce fuel consumption and for off-grid)
• You can use mains, supercharger and solar in combination to recharge even faster

2 kWh lithium:
• From 0-80% in about 120 mins from DC and mains
• 2x faster charging time with the supercharger – from 0-80% in one hour (only from alternator)
• 400W recharges from solar, from 0-80%, in 240 mins
• Again, you can use all three sources simultaneously for faster recharge

Is it possible to add extra batteries?

Right now, this isn't possible.

Is it possible to change the battery inside?

No, the LPS is extremely compact and that is one of reasons that it is not possible to change the built-in lithium battery, but it has a very long lifetime.

How many units are currently in use?

There are more than 35,000 Clayton Power products in use across the UK and Europe.
