All-in-one power solution optimises hydraulic services in the field

Case study: Hansa-Flex

All-in-one power solution optimises hydraulic services in the field.

Hydraulic service work often demands a variety of specialised equipment for repairs and maintenance — many of them needing 230V power, and a powerful 12V output as well.

Watch the case study film

Watch now!

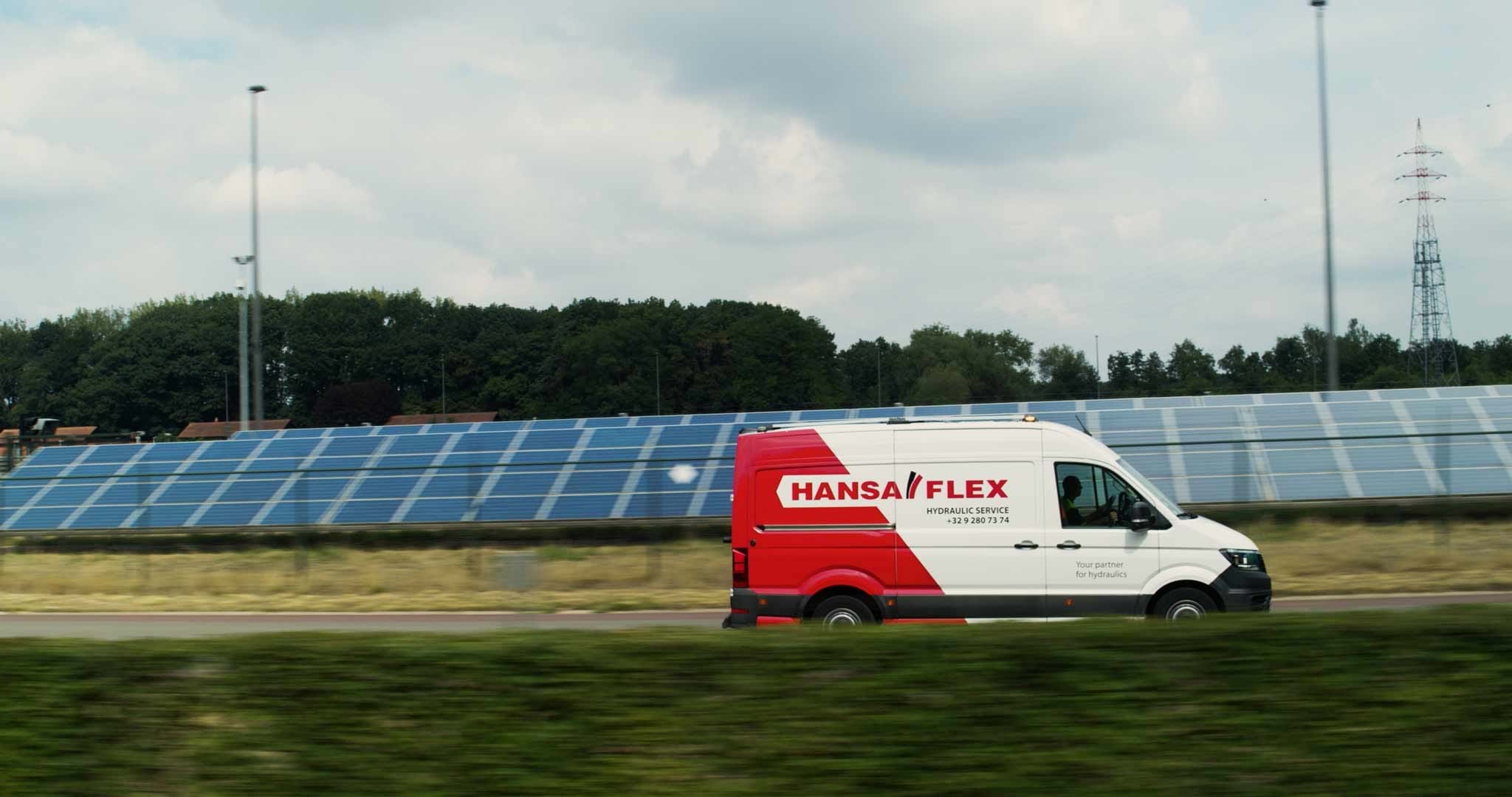

Hansa-Flex in Belgium offers hydraulic services directly at the customer’s location.

Their fully equipped service van is fitted with the advanced LPS II power supply from Clayton Power, providing seamless access to both 230V and 12V power.

Christian Malais from Hansa-Flex says, "With the LPS, I can work throughout the entire day without any interruptions."

Watch the case study film

Hansa-Flex goes green

Hansa-Flex has fitted solar panels to the roof of their service vehicle, taking a step towards sustainability. The LPS has an integrated solar charge controller, making it easy to connect the panels and use their energy. You can conveniently monitor the input from the solar panels on the LPS display, ensuring optimal performance.

95kg

Saved payload

330hrs

Annual saved engine idling

429litres

Annual saved fuel

1145kg/CO2

Annual carbon reduction

Estimated power requirement	Locations / time	Wh
Work lights & warning lights	3 x 60 min.	400
Compressor*	3 x 30 min.	1,200
Peeling machine and cutting machine	3 x 10 min.	400
Pressing machine*	3 x 10 min.	250
Charging tool batteries	3 x 30 min.	500
Microwave oven	1 x 2 min.	50
Total power consumption per working day		2,800

*Electrical equipment requires extra power at start-up.
The LPS II 3000 is built to deliver it.

Flexibility to work everywhere

Hansa-Flex frequently operates in locations with no access to external power sources. In the past, they were dependent on power provided by the client. "Now, I can work completely independently, without any issues," says Christian Malais, highlighting the newfound freedom and efficiency.

Workflow:
3 operations at 3 different locations.

Driving:
To and from the work area, and between locations.
= Total approx. 2 hours per day.

Estimated charging:

The total driving generates

charging per day: 2400 Wh

Top 3 benefits for Hansa-Flex

1. Sufficient power for the entire working day

Hansa-Flex now has uninterrupted power for the entire working day, so there is no need to worry about running out of energy during a task.

2. Independence from client power sources

Previously dependent on client-supplied power, Hansa-Flex can now work completely independently, enhancing flexibility and efficiency on every job.

3. Continuous charging of equipment

Automatic charging keeps all the necessary equipment ready to use, ensuring a smooth workflow throughout the day.

Hydraulic tools powered by LPS and solar panels

Hydraulic services often demand a variety of specialised equipment for repairs and maintenance, many of which require 230V power. On-site, Christian Malais uses several essential tools, including a peeling machine, cutting machine, and hydraulic hose pressing machine. The LPS and the solar panels charge these devices automatically, ensuring continuous operation. Safety remains a top priority. The LPS also powers the 12V warning light, keeping the worksite visible and secure.

Equipping service vehicles for greater efficiency

Ibe Deryckere from Moduvan, the company responsible for outfitting Hansa-Flex’s service vehicles, notes growing demand for varied lighting in these vehicles. The LPS from Clayton Power, with a powerful 3000W inverter and a 2 kWh lithium battery, runs essential tools and lighting seamlessly, plus extras like a coffee machine and microwave oven.

Watch the case study film

LPS II 230V & 12V power supply with li-ion battery

The power solution

1x LPS II 3000 1x IoT modem 2x Solar panels 1x Remote 1x Super Charge 1x Mounting bracket
